Beskrivelse

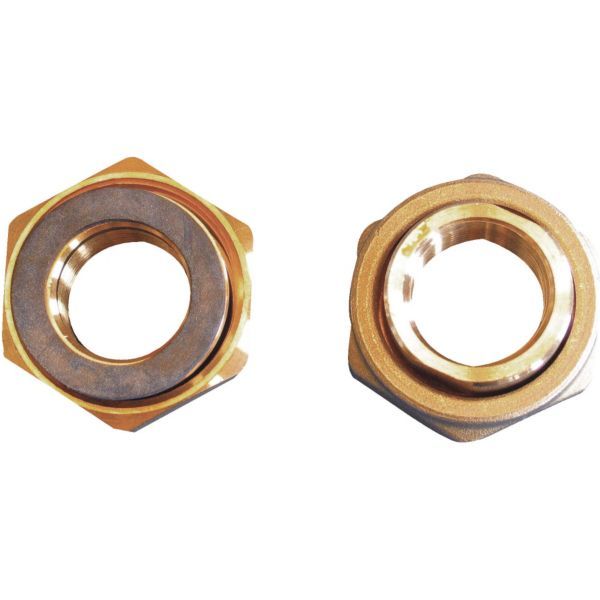

Grundfos unionsæt har 3/4″ G-gevind (ISO 228-1) (G 3/4) på indløbet og 1 1/4″ G-gevind (ISO 228-1) (G 1 1/4) på afgangen og er udført i sandblæst messing. Ifølge Grundfos passer det til UP 20-xx N og B.
Fordele
- Passer til Grundfos UP: Grundfos angiver, at sættet passer til UP 20-xx N og B.
- Driftstryk: Maks. driftstryk 25 bar.
- Gevindstandard: Begge gevind følger ISO 228-1.
- Materialekvalitet: Messing CW617N(DW), sandblæst.
Passer den til dit anlæg?
Bruges til
- Tilslutning af en Grundfos cirkulationspumpe med gevindtilslutning til rørene.
Sådan vælger du
- Denne variant: Messing (sandblæst), 3/4″ G-gevind (ISO 228-1) (G 3/4) på indløbet og 1 1/4″ G-gevind (ISO 228-1) (G 1 1/4) på afgangen. Grundfos angiver, at det passer til UP 20-xx N og B.
Montering
- Tilslutning: 3/4" G-gevind (ISO 228-1) (G 3/4) (indløb); 1 1/4" G-gevind (ISO 228-1) (G 1 1/4) (afgang).
- Monteres af VVS-installatør ved pumpens ind- og afgang.
Til installatøren
- Gevindstandard ISO 228-1 på begge tilslutninger.
- Grundfos angiver indløbsforbindelsen som type G, dimension 3/4 inch, og afgangsforbindelsen som type G, dimension 1 1/4 inch.
Se alle tekniske specifikationer →
Ofte stillede spørgsmål
Hvilket gevind har unionsættet?
3/4″ G-gevind (ISO 228-1) (G 3/4) på indløbet og 1 1/4″ G-gevind (ISO 228-1) (G 1 1/4) på afgangen, ifølge Grundfos.
Hvilke pumper passer unionsættet til?
Grundfos angiver, at det passer til UP 20-xx N og B.
Hvad er unionsættet lavet af?
Sandblæst messing (CW617N(DW)).
Hvor højt tryk tåler unionsættet?
Maks. driftstryk 25 bar, ifølge Grundfos.
Tekniske data fra producentens officielle materiale (product-selection.grundfos.com). Ret til ændringer forbeholdes.
