Beskrivelse

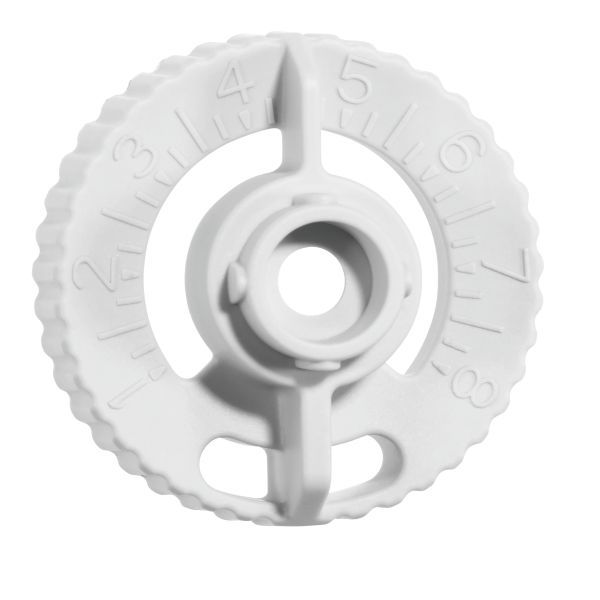

Indstillingsnøglen bruges til forindstilling af IMI Heimeiers radiatorventiler Calypso exact, Calypso F-exact og Calypso TRV-3 samt V-exact II fra 2012 og Vekolux. På Calypso exact vælges forindstillingen trinløst mellem 1 og 8.
Fordele
- Trinløs forindstilling: På Calypso exact vælges forindstillingen trinløst, og der er 7 ekstra mærker mellem forindstillingsværdierne.
- Indstilling med værktøj: Forindstillingen ændres med indstillingsnøglen eller en 13 mm fastnøgle; IMI angiver, at det sikrer, at uvedkommende ikke kan pille ved indstillingen.
- Flowrett og Tworett: Nøglen bruges også til forindstilling af Calypso TRV-3-ventildelen i Flowrett- og Tworett-systemer.
Passer den til dit anlæg?
Bruges til
- Forindstilling af radiatorventilerne Calypso exact, Calypso F-exact og Calypso TRV-3 samt V-exact II fra 2012 og Vekolux ved indregulering af varmeanlæg.
Sådan vælger du
- Denne nøgle: Calypso exact, Calypso F-exact, Calypso TRV-3, V-exact II og Vekolux (grå).
- Eclipse: orange indstillingsnøgle
Montering
- Sæt nøglen på ventilindsatsen, drej til den går i indgreb, drej til ønsket værdi ud for indekspunktet, og fjern nøglen.
Til installatøren
- Alternativ: En 13 mm fastnøgle kan bruges i stedet for indstillingsnøglen på Calypso exact og Calypso F-exact.
- Fabriksindstilling: IMI angiver indstilling 8 som standardindstillingen på Calypso exact og Calypso F-exact.
Se alle tekniske specifikationer →
Passer til
- Calypso exact DN10 lige
- Calypso exact DN15 lige
- Calypso exact DN20 lige
- Calypso exact DN15 vinkel
- Calypso exact DN15 omvendt vinkel
- Calypso F-exact DN15 lige
Varianter
Ofte stillede spørgsmål
Kan jeg forindstille uden nøglen?
Ja, Calypso exact og Calypso F-exact kan også forindstilles med en 13 mm fastnøgle.
Passer nøglen til Eclipse?
Nej, til Eclipse bruges den orange indstillingsnøgle (VVS-nr. 403320-900).
Hvilke ventiler passer nøglen til?
Calypso exact, Calypso F-exact, Calypso TRV-3, V-exact II fra 2012 og Vekolux.
Bruges nøglen også i Flowrett- og Tworett-systemer?
Ja, til forindstilling af Calypso TRV-3-ventildelen i Flowrett- og Tworett-systemer.
Dokumentation
- Brochure Calypso exact PDF · 2,1 MB
- Brochure Calypso F-exact PDF · 1,6 MB
- Brochure Tilbehør radiatorventiler PDF · 1,4 MB
- Brochure Flowrett/Tworett/TA-UNI PDF · 1,9 MB
Tekniske data fra producentens officielle materiale (climatecontrol.imiplc.com). Ret til ændringer forbeholdes.
